Electronic Bells

The Transport System Solutions electronic bell type EBA

The TSS electronic bell type EBA replaces the electromechanical bell. The bell is used for railway crossings and in systems for closing off bridges. A special feature is that the sound pressure can be adjusted and that the bell has a day/night switch.

The casing of the bell is made of cast aluminium. This makes the bell suitable for all weather conditions, including tropical climates. The electronic bell type EBA can be assembled as a stand-alone construction unit.

The electronic bell type EBA is available in a large variety of voltages. That is why nearly all types of closing systems are equipped with a bell made by TSS.

  1. Solid and weatherproof casing of cast aluminium
  2. Available in various supply connection voltages
  3. Adjustable sound pressure
  4. Variety of sounds
  5. Day/night switch for decreasing sound pressure
  6. High operational reliability


Technical specifications

Material : cast aluminium
Weight : 5 kilos
Colour : RAL 9005 (black)
Principal dimensions : 220 x 175 (exclusive mast set-up)
Protection factor mechanical : IP 44 according to IEC-529
Loudspeaker : IP 67 according to IEC-529
Supply voltage : 10-18 Vdc / 16-36 Vdc / 20-27 Vac / 230 Vac
Sound : in accordance with mechanical bell NS (Dutch Railways), 5 beats per second
Sound pressure : nominal 83dB (A) ±2
Night position : -6 dB(A) ±2
Operational temperature : -25 °C and +50 °C, in accordance with IEC 68-2-38
Voltage-current pulse test : in accordance with IEC 801-5 level 4
Insulation value : 3 kV


Download Electronic Bells Brochure


  1. Electronic Bell (.pdf)

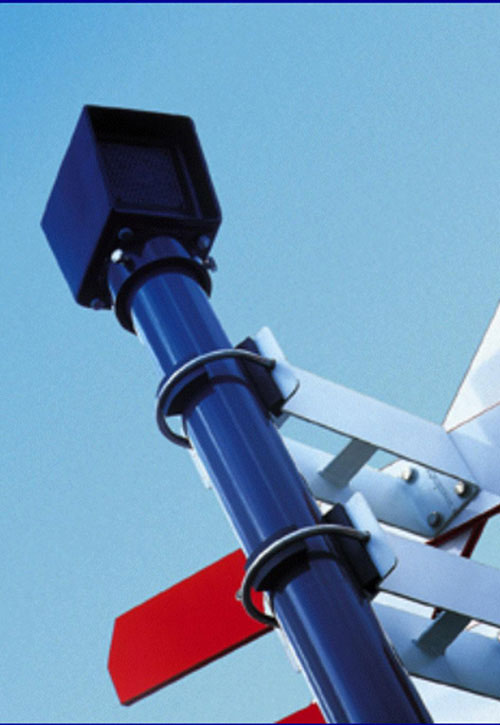

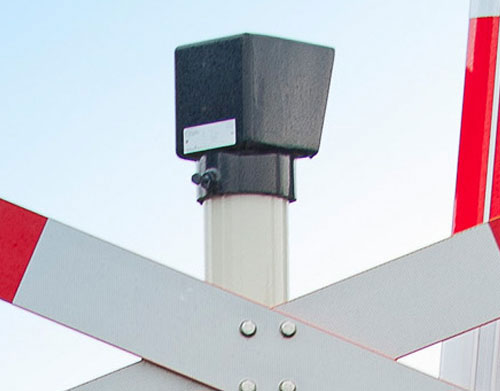

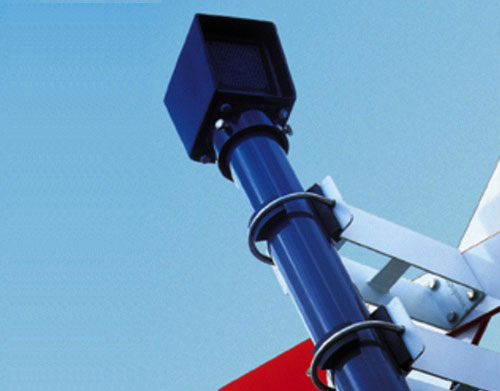

Images for Electronic Bells
